FORGED STEEL VALVE
FORGED STEEL VALVE

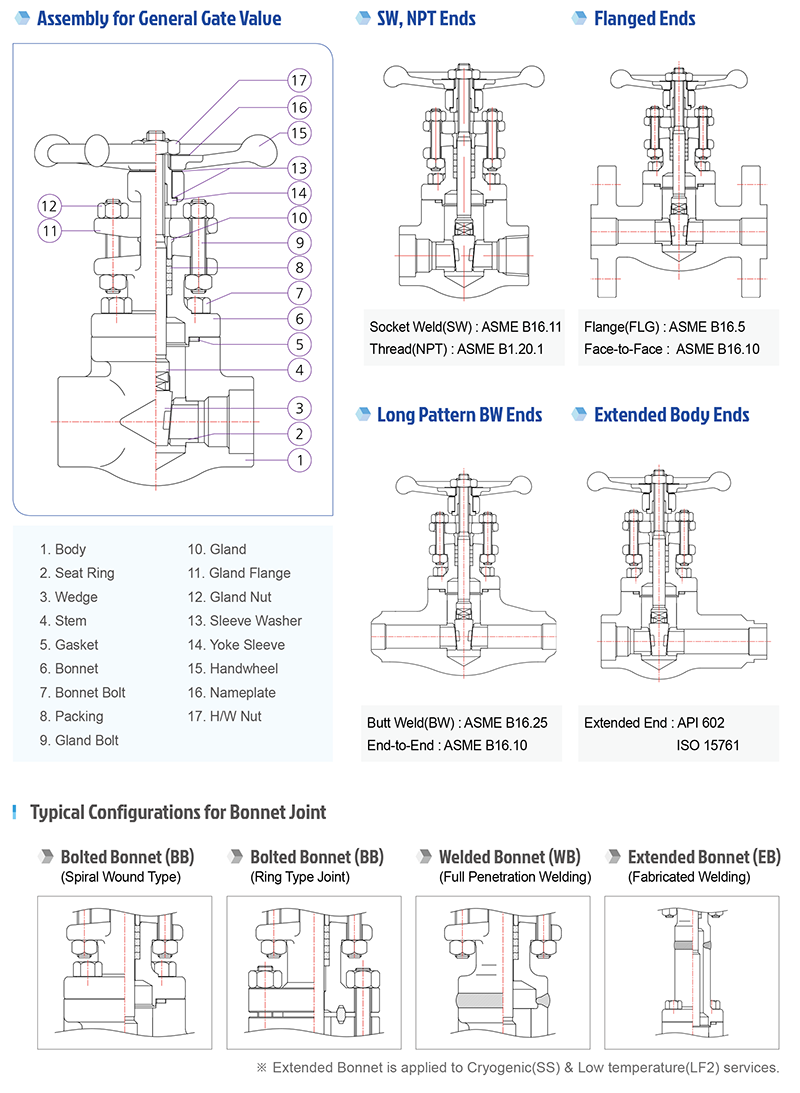

Gate Valves
(Design Standard: API 602, BS 5352, ISO 15761, ASME B16.34)

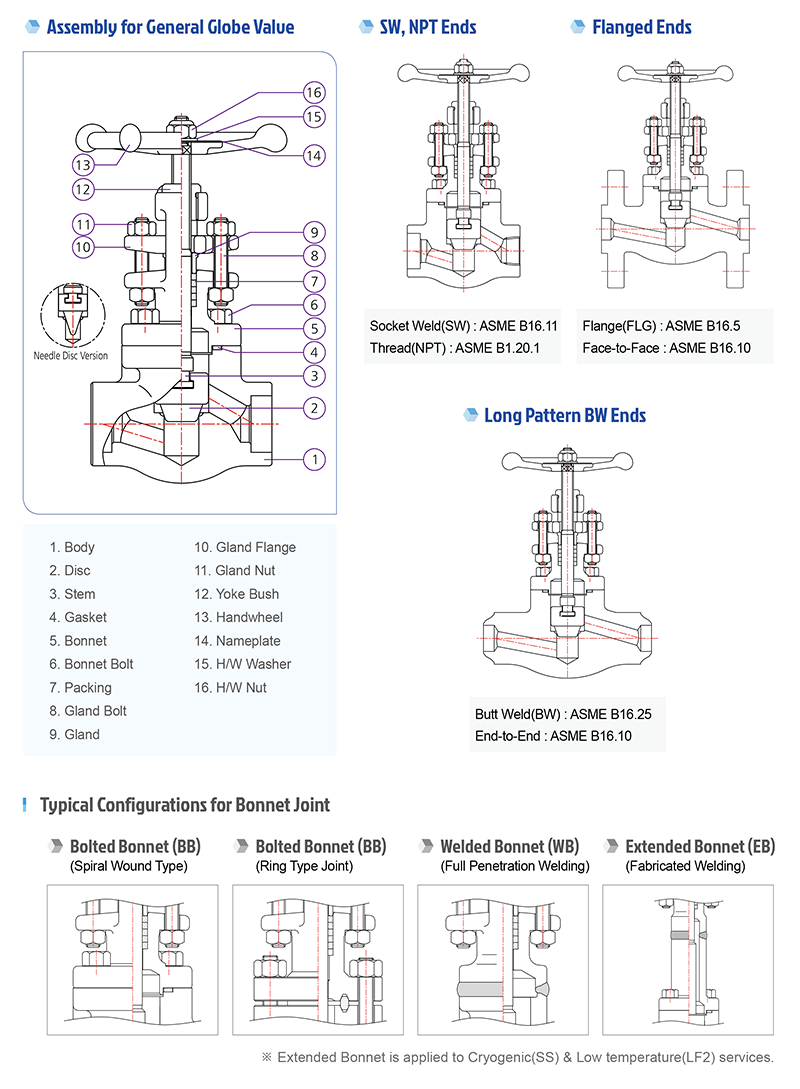

Globe Valves
(Design Standard: API 602, BS 5352, ISO 15761, ASME B16.34)

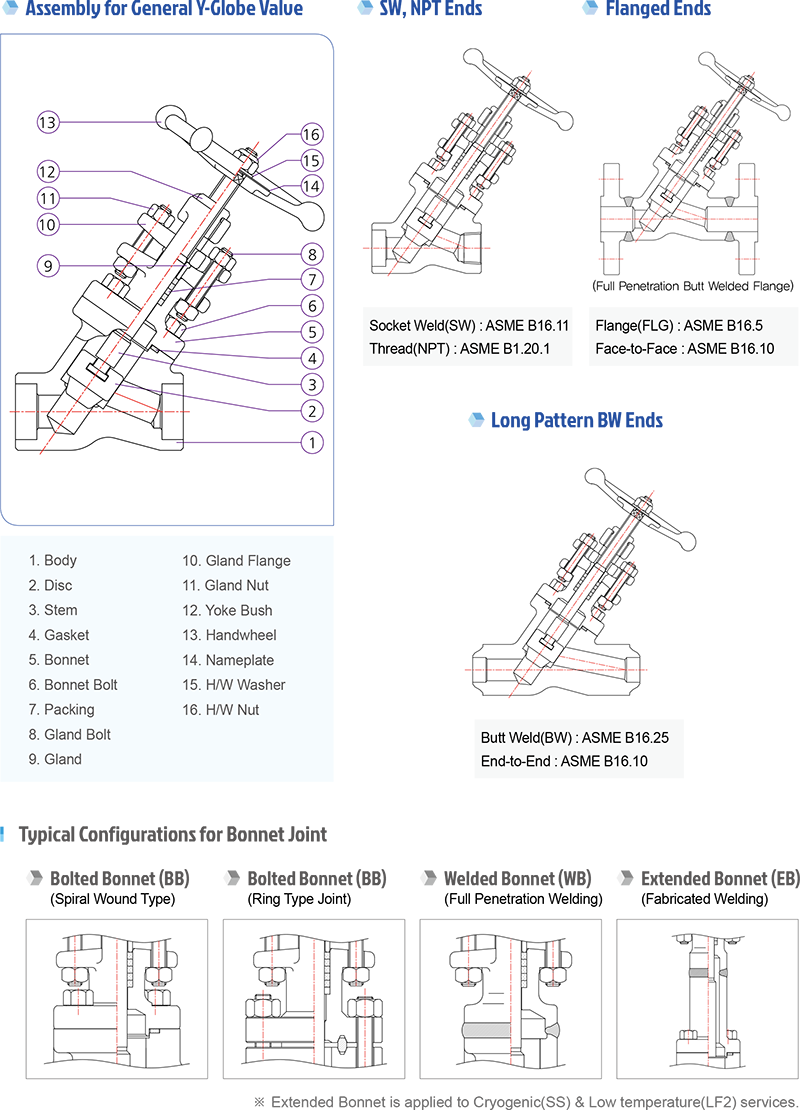

Y-Globe Valves
(Design Standard: API 602, BS 5352, ISO 15761, ASME B16.34)

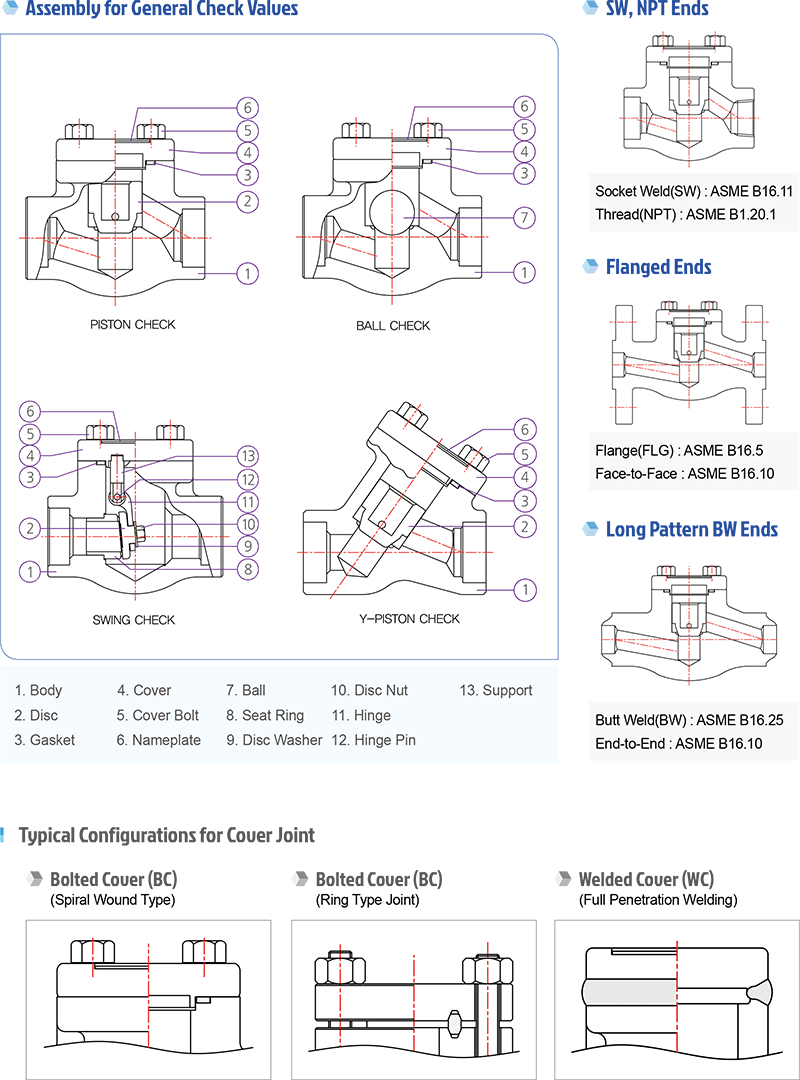

Check Valves
(Design Standard: API 602, BS 5352, ISO 15761, ASME B16.34)

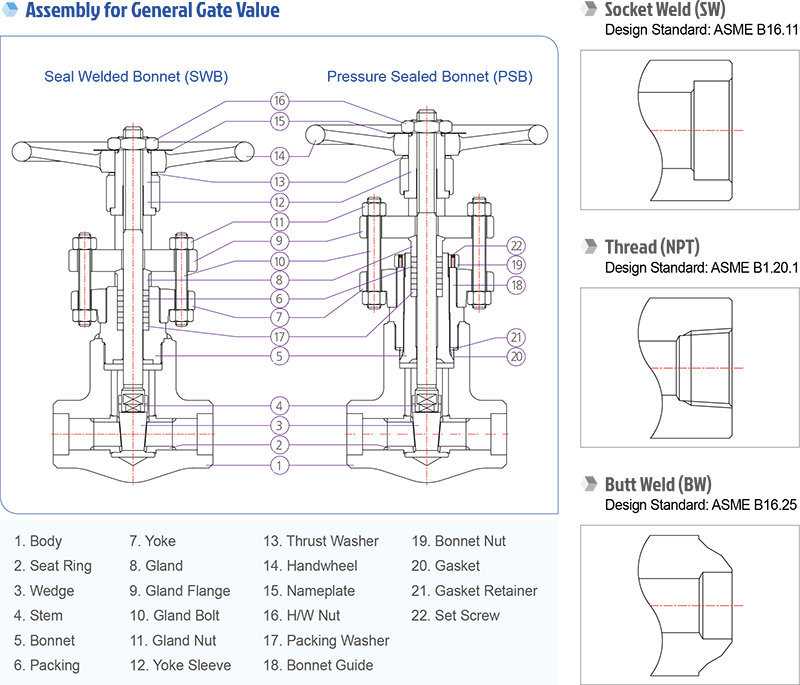

High Pressure Gate Valves
(Design Standard: ASME B16.34)

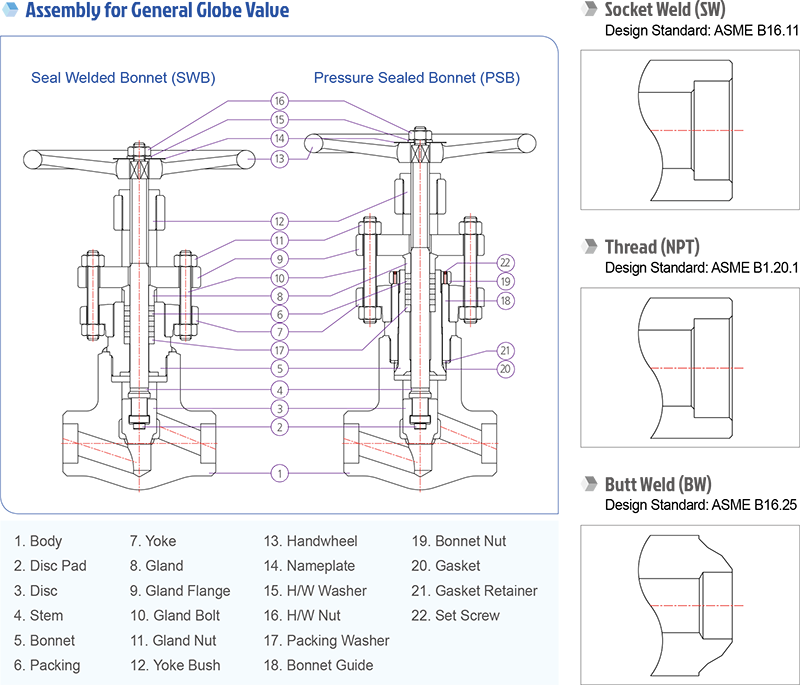

High Pressure Globe Valves
(Design Standard: ASME B16.34)

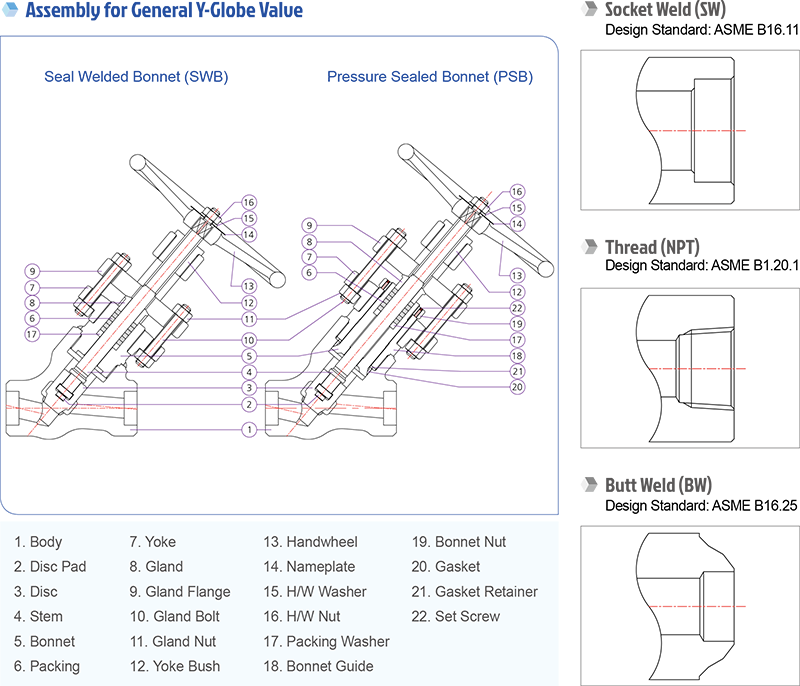

High Pressure Y-Globe Valves
(Design Standard: ASME B16.34)

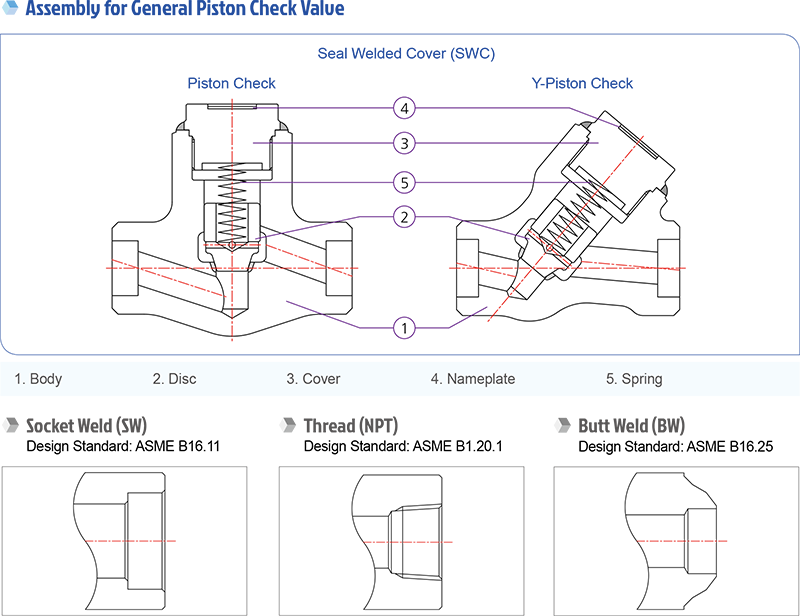

High Pressure Check Valves
(Design Standard: ASME B16.34)
STANDARD MATERIAL SPECIFICATION
좌우로 스크롤해서 확인하세요.
| PART NAME / MATERIAL | CARBON | LOW-TEMP. CARBON STEEL | LOW ALLOY | STAINLESS | SPECIAL ALLOY / DUPLEX |
|---|---|---|---|---|---|
| BODY BONNET COVER |
A105N | A350-LF2 | A182-F5 | A182-F304(L/H) | Monel |
| A182-F5a | A182-F316(L/H) | Inconel | |||
| A182-F9 | A182-F317(L) | Hastelloy | |||
| A182-F11 CL2 | A182-F321(H) | Alloy20 | |||
| A182-F22 CL3 | A182-F347(H) | Duplex | |||
| A182-F91 | A182-F44 | ||||
| STEM SEAT RING |
A276-410 | A276-410 | A276-410 | A276-304 | Monel |
| A276-304 | A276-304 | A276-304 | A276-316 | Inconel | |
| A276-316 | A276-316 | A276-316 | A276-321 | Hastelloy | |
| Monel | A276-317 | Alloy20 | |||
| A276-347 | Duplex | ||||
| WEDGE DISC |
A217-CA15 | A217-CA15 | A217-CA15 | A351-CF8 | Monel |
| A351-CF8 | A351-CF8 | A351-CF8 | A351-CF8M | Inconel | |
| A351-CF8M | A351-CF8M | A351-CF8M | A351-CG8M | Hastelloy | |
| Monel | A351-CF8C | Alloy20 | |||
| Duplex | |||||
| YOKE SLEEVE /BUSH | A582-416 | A582-416 | A582-416 | A582-416 | A582-416 |
| GLAND FLANGE | A105N | A105N | A105N | A182-F316 | A182-F316 |
| GLAND PACKING | Graphite / PTFE | Graphite / PTFE | Graphite / PTFE | Graphite / PTFE | Graphite / PTFE |
| BONNET BOLT | A193-B7 / B7M | A320-L7 / L7M | A193-B16 | A193-B8 | A193-B8M |
| A193-B8M | |||||
| GLAND BOLT | A193-B8 | A193-B8 | A193-B8 | A193-B8 | A193-B8 |
| GLAND NUT | A194-8 | A194-8 | A194-8 | A194-8 | A194-8 |
| GLAND | A276-316 | A276-316 | A276-316 | A276-316 | A276-316 |
| HANDWHEEL | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| GASKET | 304+Graphite | 304+Graphite | Stainless+Graphite | Special Alloy+Graphite | |
| 316+Graphite | 316+Graphite | 316+Graphite | |||
| HANDWHEEL NUT | Carbon Steel / IRON | Carbon Steel / IRON | Carbon Steel / IRON | Carbon Steel / IRON | Carbon Steel / IRON |
| NAME PLATE | Aluminium | Aluminium | Aluminium | A240-304 | A240-304 |
