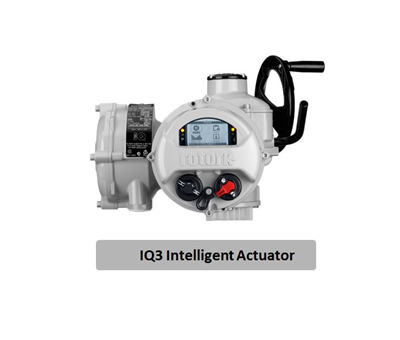

· Three-phase, direct current and single-phase variants

· Advanced, multilingual display for status and setup

· Detailed data logging

· Setting and data capture via Bluetooth® hand-held tool

· InSight2 PC software for valve performance analysis

· Highly intuitive user interface

· Comperhensive control and flexibility

· Direct torque output from 34 Nm to 3,000 Nm. Gearboxes - multi-turn up to 43,000 Nm and quarter-turn up to 1,000,000 Nm

Redefining Flow Control

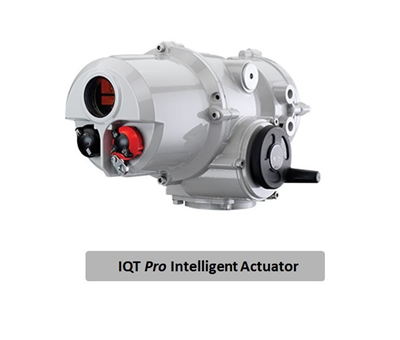

· Intelligent communication options with multilingual display

· Quarter-turn

· Isolating/Regulating

· Non-Intrusive Set-up

· Digital, Analogue or Bus Remote Control

· Diagnostic Software Tools available

· Self Locking Output

· Partial Stroking

Redefining Flow Control

· Quarter-turn and linear

· High resolution and repeatability

· Comperhensive datalogging

· Watertight IP68 and explosion-proof enclosures

· Linear version available up to 5,000 Ibsf

· Separate double-sealed terminal compartment

· Non-interusive setup/calibration using Bluetooth®

· Optional manual override

Redefining Flow Control

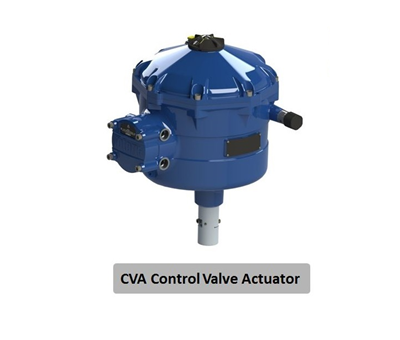

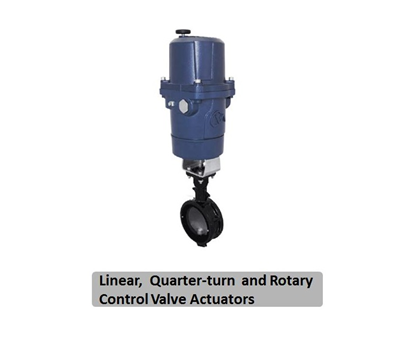

· Linear, quarter-turn and multi-turn versions

· Range of five compact sizes

· Maintenance-free drive train

· Accurate and repeatable positional control

· Resolution is 0.25% on linear and quarter-turn applications and 2degrees on the multi-turn configuration

· Continuous and unrestricted modulating performance

Redefining Flow Control

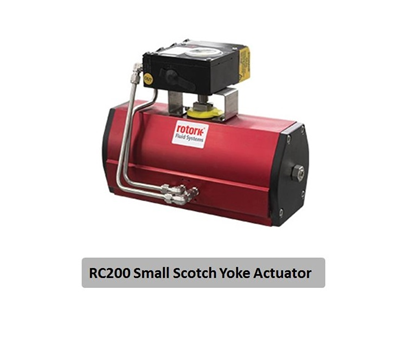

· Scotch Yoke Actuators

· Double Acting or Spring Return

· Canted Yoke Design

· Torque up to 4,400 Nm

Redefining Flow Control

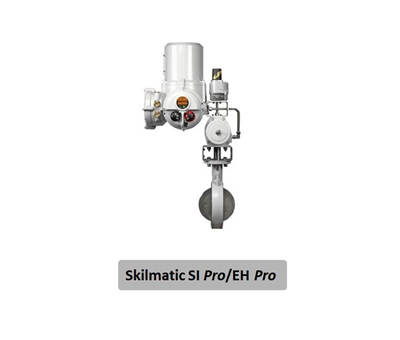

· Designed for use in critical safety shutdown applications

· Partial stroke test capability

· Datalogging

· Linear thrust output 1.7 to 5,500 kN Quarter-turn torque output 65 to 600,000 Nm

· Two position fail safe or modulating control with valve flow characteristaion

· Non intrusive setting tool Infrared & Bluetooth® - for configuration, interrogation and downloading of data

· 32 character multilingual LCD display

· Status & monitoring diagnostics

Redefining Flow Control

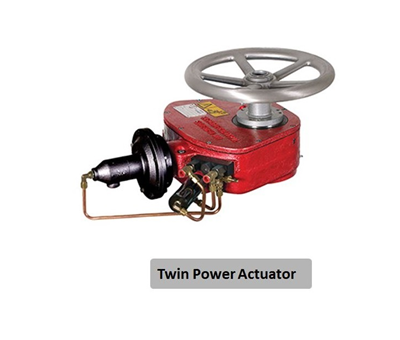

· Multi-turn Actuator

· Pneumatic/hydraulic

· Manual override

· Torque up to 800 Nm

Redefining Flow Control

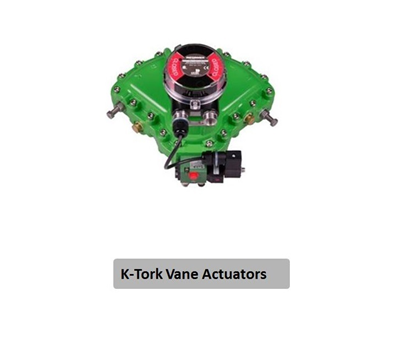

· Double-acting and spring-return configurations

· Torque outouts up to 18,300 Nm (155,000 in-Ibs)

· Provides high torque output in a compact size

· The dual-opposed lip seals eliminate all perssure-retaining o-rigns in the actuator

Redefining Flow Control

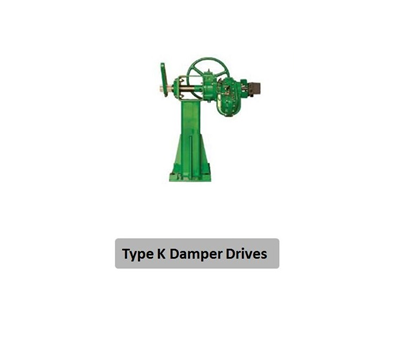

· Direct 'Drop-In-Place' design matches existing damper drive take-out dimensions

· Torque output up to 28,201 Nm (20,800 ft-Ibs)

· High-speed poeration as quick as 3-5 seconds full scale

· Highly accurate and responsive

· Safety and Serviceability

· Harsh environment / high-temperature design

· Infinite duty cycle

Redefining Flow Control
