KNIFE GATE VALVE
KNIFE GATE VALVE

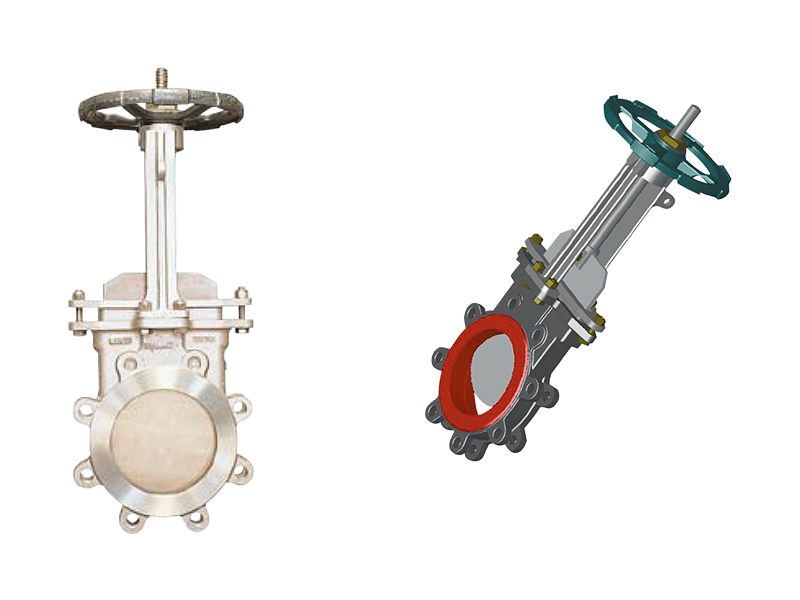

FEATURE
Knife gate valves are designed to handle the process industries (Ash, pulp&paper, power/utility, Oil and Gas production, Chemical refining)
HW knife gate valves have a Lug face to face & Raised face to face body design.
Available seats are metal & Resilient seat especially EPDM, Poly-amide, Teflon, Silicone, etc....
Design feature also include a raised face seat with the groove that prevents clogging (As the valve is open the flow cleans the groove)
STANDARD MATERIALS
좌우로 스크롤해서 확인하세요.
| NO. | PART NAME | MATERIAL CODE(ASTM) | MATERIAL CODE(JIS) |
|---|---|---|---|
| 1 | BODY | STAINLESS STEEL 304 (A351-CF8) | SCS13 |
| STAINLESS STEEL 316 (A351-CF8M) | SCS14 | ||
| STAINLESS STEEL 316L (A351-CF3M) | SCS16 | ||
| 2 | DISC | STAINLESS STEEL 304 (A240-304) | SUS304 |
| STAINLESS STEEL 316 (A240-316) | SUS316 | ||
| STAINLESS STEEL 316L (A240-304) | SUS316L | ||
| 3 | PACKING GLAND | STAINLESS STEEL 304 (A351-CF8) | SCS13 |
| STAINLESS STEEL 316 (A351-CF8M) | SCS14 | ||
| 4 | YOKE | STAINLESS STEEL 304 (A351-CF8) | SCS13 |
| 5 | SLEEVE | BRONZE CASTING (C83600) | BC6 |
| 6 | PACKING | LUBRICATED PTFE IMPREGNATED PTFE FIBER BRAIDED | ← |
| 7 | THRUST BEARING | 2 ~8 : 51107, 10 ~12 : THRUST PLATE(BRONZE) 14 ~24 : 51112 |
← |
| 8 | HAND WHEEL | CAST IRON | FC200 |
▶ Consult for other materials

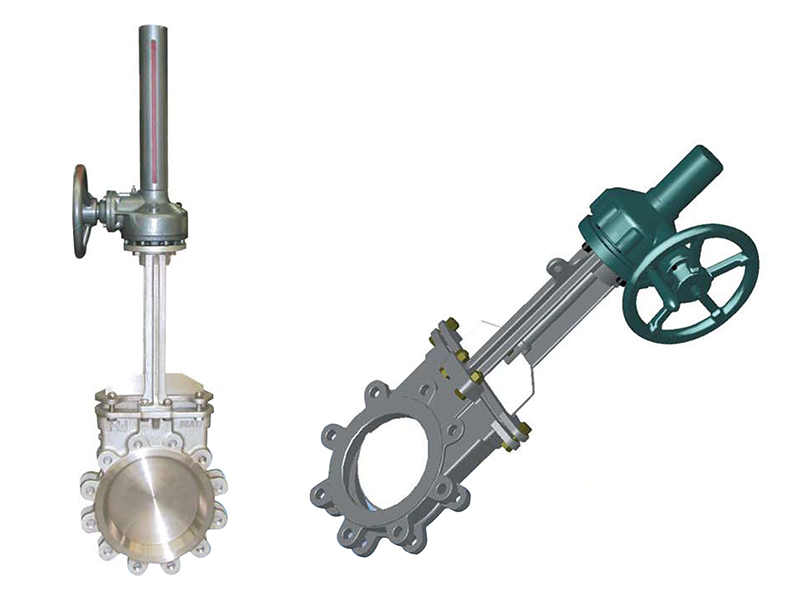

BEVEL GEAR TYPE

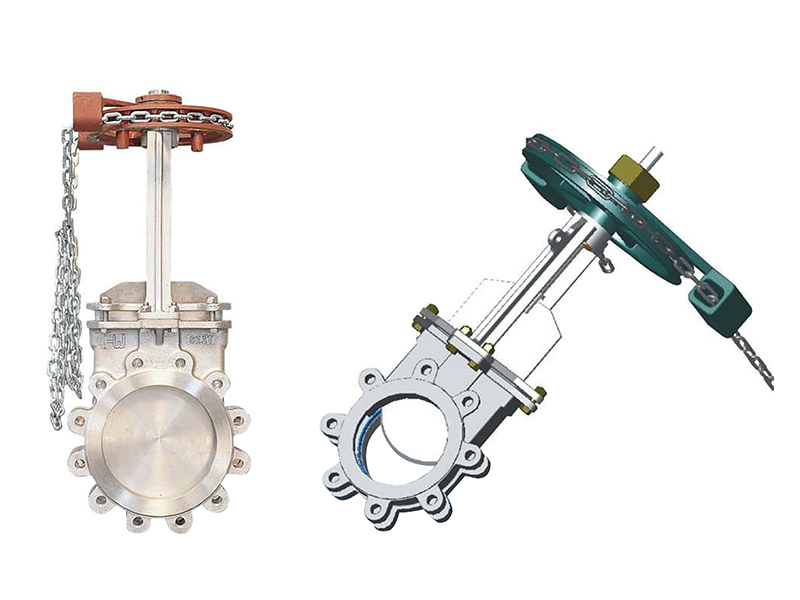

GHAIN WHEEL TYPE

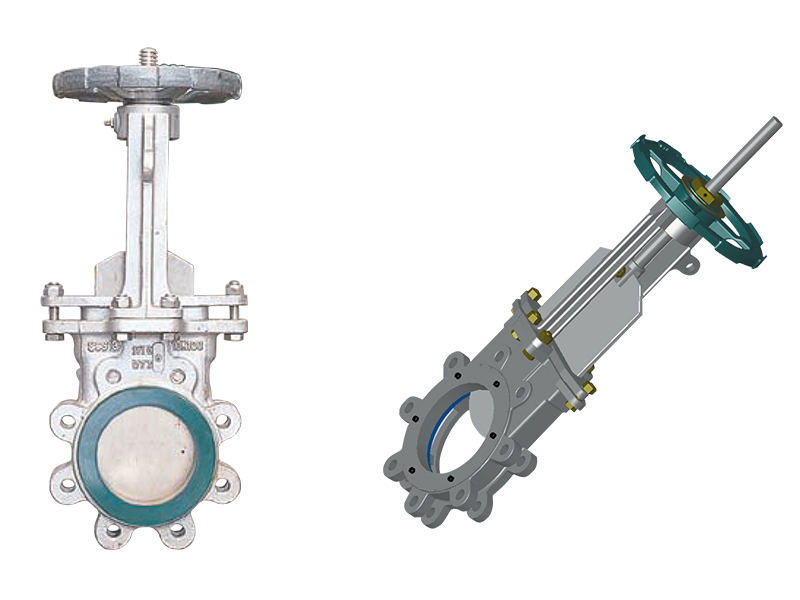

UNI- SEATED KNIFE GATE VALVE
FEATURE
Uni-seat Knife gate valves are designed for application in the power industries, Ash, waste water handling and RFCC.
They are also designed for high abrasive slurry and bi-directional service.
Uni-valves have a lug face to face.
Service temperature ratings are 76 248 F(-60 120 ), available size is 2 24 Uni-valves have a continuous poly-urethane seat from packing chamber to flange face including body chest.
Thus, no additional gaskets for installing valves are required.
Uni-valves is offered a variety of actuator including handwheel, chain, gear, electric, air or Hydraulic actuation.
