CAST STEEL VALVE

CAST STEEL VALVE

SERVICE FEATURES

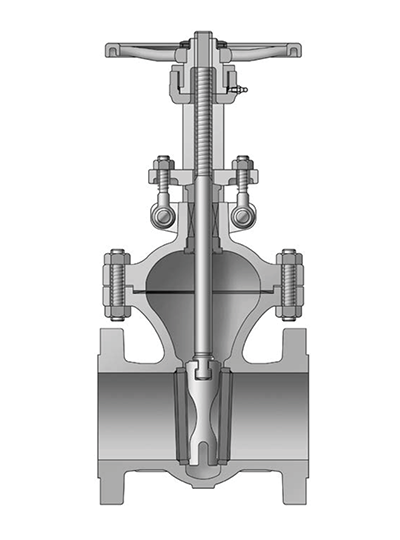

  • GATE VALVE

    GATE VALVE

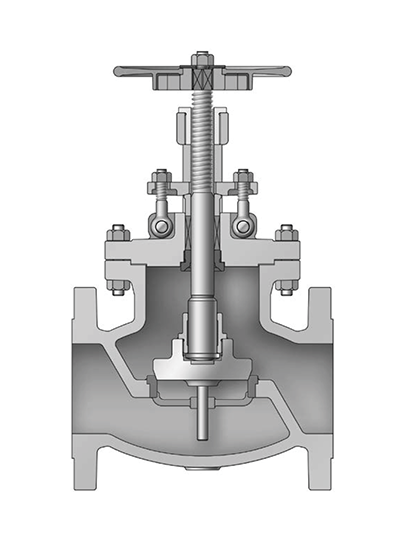

  • GLOBE VALVE

    GLOBE VALVE

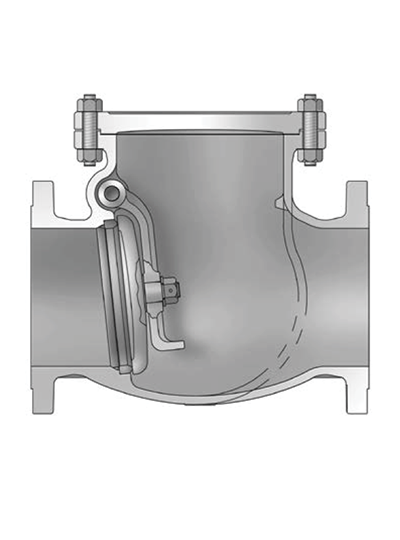

  • SWING CHECK VALVE

    SWING CHECK VALVE

  • Several trim combinations available for various services.
  • Straight-through port design offering a good flow with minimum frictional loss and turbulence.
  • Cast steel Valve suitable for works demanding strength, shock resistance, elongation and heat resistance.
  • Bottom seating of seat rings ground accurately for maximum strength and tightness(globe).
  • Bypass mounting to equalize pressures.
  • Normal yoke bushing furnished with ductility resistant to high melting point of above 2200°F.
  • Level and weight available to accelerate/decelerate disc closing (swing check).
  • Designed for maximum flow with minimum pressure drop if possible.
  • Precision-ground seating surfaces and revolving disc providing a long life.

In the refineries, power plants, utilities and petrochemical/chemical process industries, PK cast steel valve have been regarded as of great importance about their excellent performance and reliability. By discriminatory blending of carefully selected materials combined with sound design and precision machining/assembly under strict quality controls, PK steel valve have gained general and wide acceptance. The products are manufactured in accordance with ASTM, ANSI, or other international standards.

CAST STEEL VALVE PRODUCTION RANGE

좌우로 스크롤해서 확인하세요.

class/type 150 300 600 900 1500 2500
GATE 2-∞ 2-80 2-48 2-48 2-30 2-30
GLOBE 2-64 2-64 2-36 2-36 2-24 2-24
SWING CHECK 2-64 2-64 2-48 2-36 2-30 2-30
TILTING CHECK 2-64 2-64 2-48 2-36 2-30 2-30
Y-GLOBE 2-60 2-48 2-36 2-36 2-24 2-24
ANGLE GLOBE 2-24 2-24 2-24 2-24 2-24 2-24
  • Carbon Steel : ASTM A216-WCB or Equivalent
  • Alloy Steel : ASTM A217-WC6, WC9, C5, C12, C12A or Equivalent
  • Stainless Steel : ASTM A351-CF8, CF8M, CF3, CF3M, CN7M, or Equivalent
  • Duplex Stainless Steel : ASTM A995-1A, 2A, 4A, 5A or Equivalent
  • Special Alloy Steel : Inconel 625, Incoloy 825, Hastelloy C, Monel, AL-BRONZE
  • ASME SA designation material(e.g ASME SA217-WC6)
