BUTTERFLY VALVE
BUTTERFLY VALVE
TRIPLE OFFSET TYPE
DESIGN
- Designed in accordance with ASME B 16.34 or other customer requirements.
- Fire safe design
- STANDARD
- OPTION
FACE TO FACE DIMENSIONS
- WAFER AND LUG TYPE
- • API 609 Table 2./ MSS-SP-68 Table 1
Class 150 & 300 : 3"~ 24"
Class 600 : 3"~ 12" - • ISO 5752 Table 5
Class 150 & 300 : 28"~ 48"
Class 600 : 14"~ 24"
- DOUBLE FLANGE
- • ISO 5752 Table 4, BS 5155 Table 6 (short)
Class 150 & 300 : 3"~ 24"
ISO 5752 Table 4, BS 5155 Table 6 (long)
Class 600 : 3"~12" - • ISO 5752 Table 4, BS 5155 Table 6 (short)
Class 150 & 300 : 28"~ 80"
ISO 5752 Table 4, BS 5155 Table 6 (long)
Class 150 & 300 : 3"~ 80"
Class 600 : 14"~24" - • ASME B16.10
Class 150 & 300 : 3"~ 24"
Class 600 : 3"~24"
- BUTT WELDING
- • ISO 5752 Table 4, BS 5155 Table 6(long)
Class 150 & 300 : 3"~ 80"
Class 600 : 3"~24"
END FLANGE
- • ASME B16.5 : Class 150, 300,600
JIS B2210 : 10K. 16K, 20K, 30K, 40K
DIN, ISO PN10, PN16, PN20, PN25, PN40 - • ASME B16.47 series A : Class 150, 300
MSS-SP-44 : Class 150, 300, 600
BS 3293 : Class 150, 300
OPERATING
- • MAUNAL WORM GEAR
- • ELECTRIC, PNEUMATIC & HYDRAULIC ACTUATOR LOCK LEVER
MOUNTING FLANGE
- • ISO 5211
TESTING
- • API 598
- • MSS-SP-61, ANSI B16.104

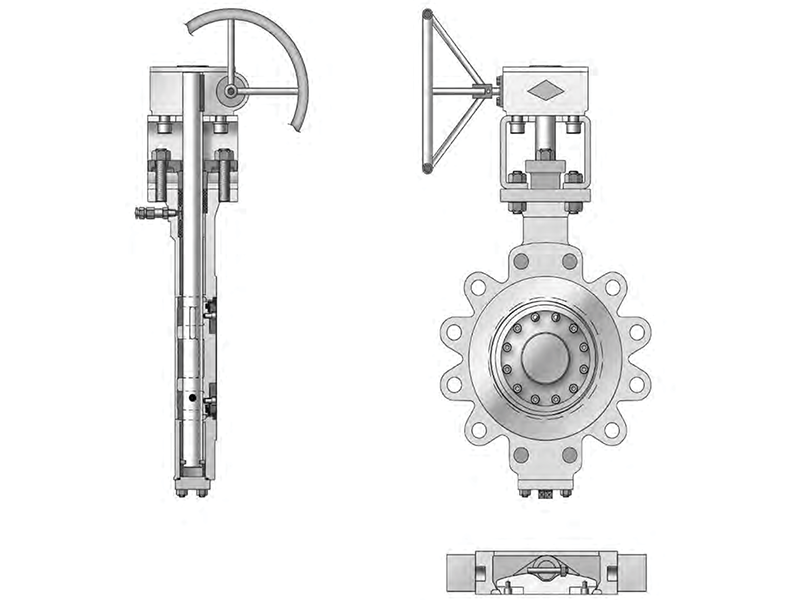

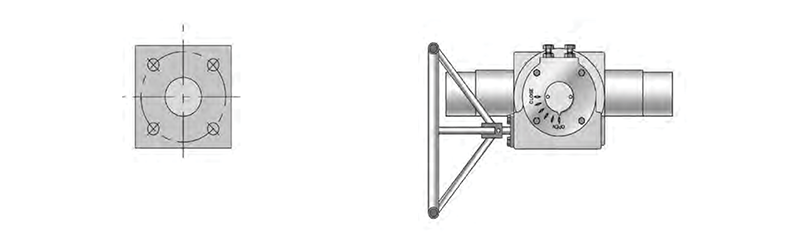

TOB VALVE-LUG TYPE

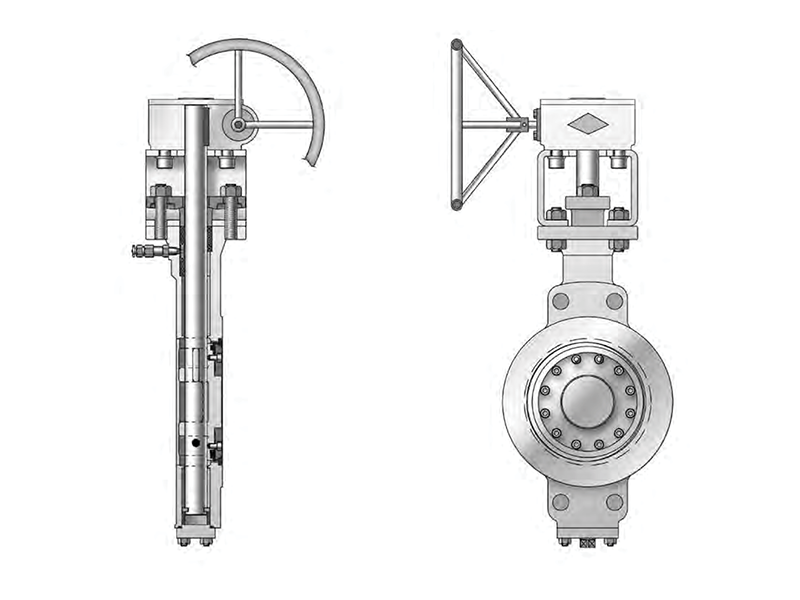

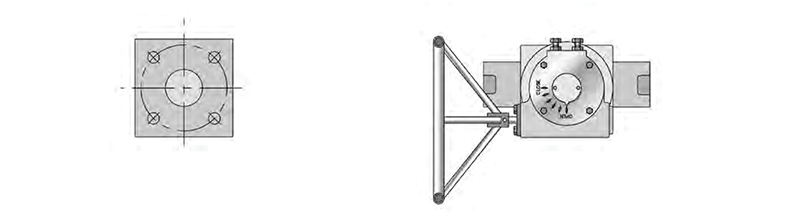

TOB VALVE-WAFER TYPE

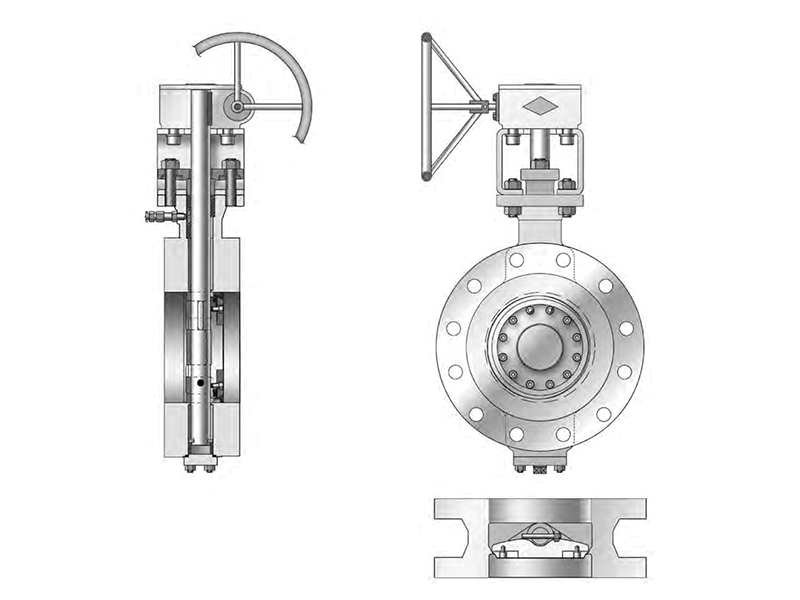

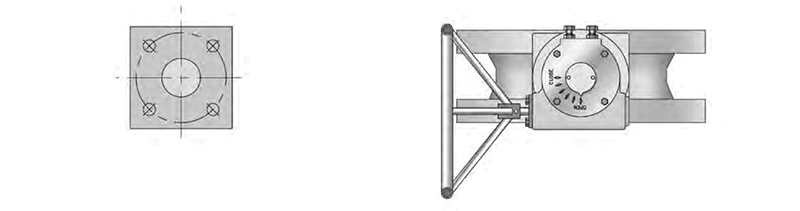

TOB VALVE - DOUBLE FLANGE TYPE

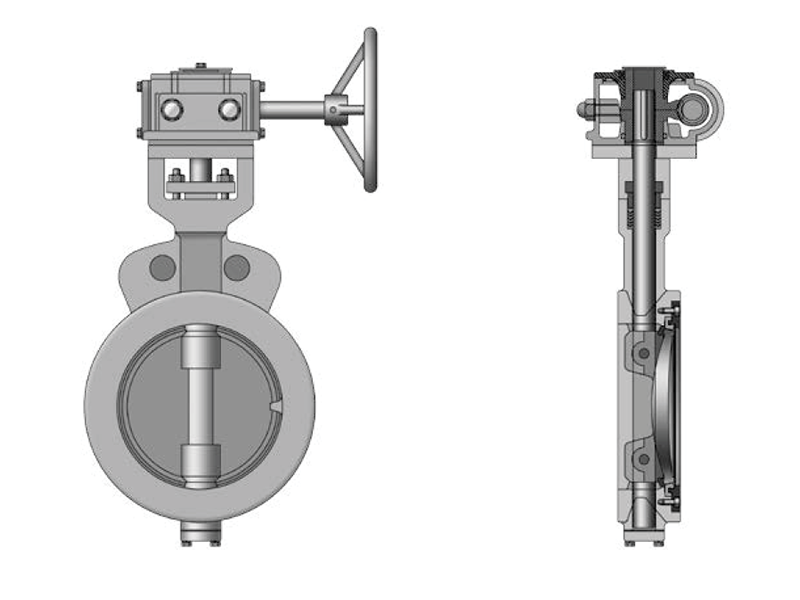

High-Performance Type Butterfly Valve
- Extention of seat durablity for double eccentricity (metariallzation row abrasion of seat)
- Easy changing seat and parts due to standard for all structures (reduce maintenance cost)

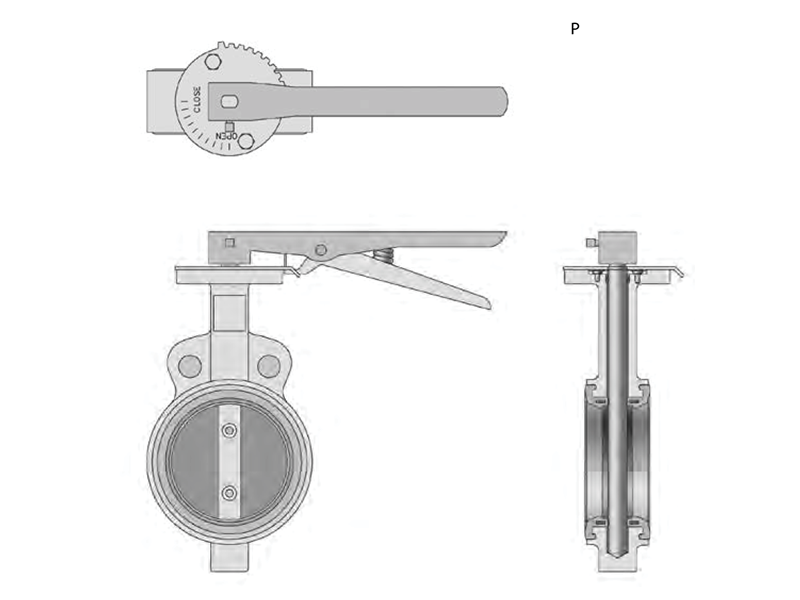

Rubber Seat Butterfly Valve (Concentric Design)
- We intend from ceaseless technical development effort to zero leakage ratio and minimize valve torque. We manufacture to be used on optimum condition to various actuator of "pneumatic"etc.
